Features
Features
The Neoss Implant System offers one universal implant level impression coping for both open and closed tray impression techniques. A dedicated open tray impression coping is also available.

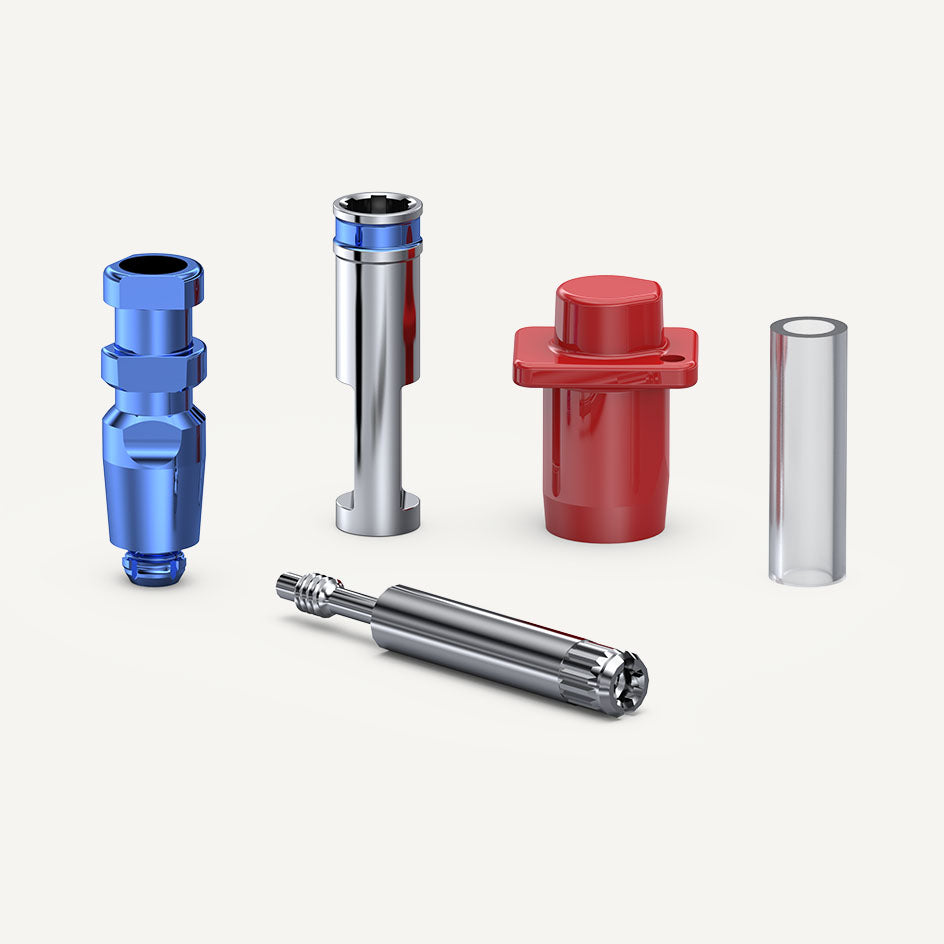

Impression Coping and Replica
Includes Coping, Screw, Replica, Extension Tube for Open Tray and Plastic Cap for Closed Tray Technique
Impression Coping Open and Replica
Includes Coping, Screw, Replica and Extension Tube The open tray coping kit contains impression coping and implant replica.
The impression coping is pre-assembled with the screw and the extension tube.
Technical specs
Technical specs
Assortment
The dedicated impression coping is available in 8, 11 and 18mm lengths. It is also available in 11mm for the Ø3.25mm implant. The specific open tray impression coping is available in 8 and 13mm lengths.
Impression Technique
The universal impression coping kit contains an impression coping, a red impression coping cap and an implant replica. The impression coping is pre-assembled with the screw and the extension tube. The red impression coping cap is only used with the closed tray impression technique.
Intended use
The purpose of an impression is to accurately transfer the position of the implant, or sometimes an abutment, in relation to natural teeth, other implants and soft tissue contours to a model Implant level impressions are used to accurately and easily record implant positions using open or closed tray techniques. Exceptions are the Express and Access Abutments which have their own specific copings.
Material
The impression copings are made of stainless steel (apart from Ø3.25 Impression coping which is made of titanium).
Packaging
The universal impression coping kit contains an impression coping, red impression coping cap and Implant Replica. The Impression Coping is pre-assembled with the screw and the extension tube. The red impression coping cap is only used with the closed tray impression technique. The open tray coping kit contains impression coping and implant replica. The impression coping is pre-assembled with the screw and the extension tube.
Seating
The Neoss impression coping is ‘self-seating’. This means that the screw will not engage the implant if the coping is not correctly seated. However, a radiograph is recommended if there is any uncertainty or risk of soft tissue entrapment.
The upper part of the impression coping has a direction indicator located between the two flat surfaces that align with one of the engaging lugs for optimal orientation.
The direction indicator is ideally positioned facially for proper seating of the red impression coping cap. Align the flat side of the red impression coping cap with the direction indicator on the impression coping to allow for proper orientation of the impression coping cap during seating.
Tightening torque
10 Ncm max.
For all procedure details please see Neoss Implant System Manual.
