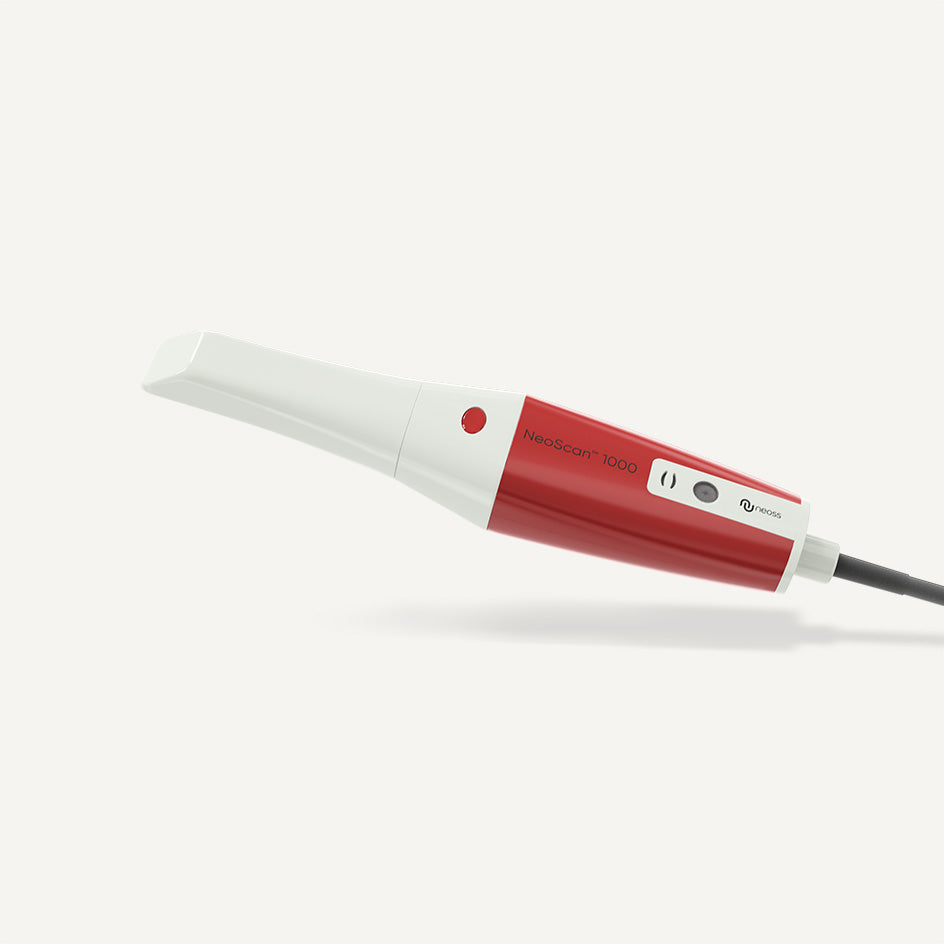

NeoScan™ 1000 & Accessories

Compact
The handle is ergonomically designed and very easy to hold. Even with a compact size, it achieves a 16 mm x 14 mm high-definition field of view.

Lightweight
With a handle weight of only 198 grams, like a smartphone, it will not cause discomfort even when held for a long time.

Simplified connection
Easy to share the scanner between dental chairs. NeoScan 1000 is powered directly by the computer, no need for a separate power supply.

Touchless control
With a motion-capture feature and buttons on the handpiece, users can complete the entire process of scanning, optimizing, and exporting without touching the computer.

Vivid Color
Thanks to high-resolution and true-color images, it allows users to distinguish tooth structure and soft tissues, so that margin lines and undercut areas can be easily identified.

Weight
Scanner (cable included) without tip: 260g

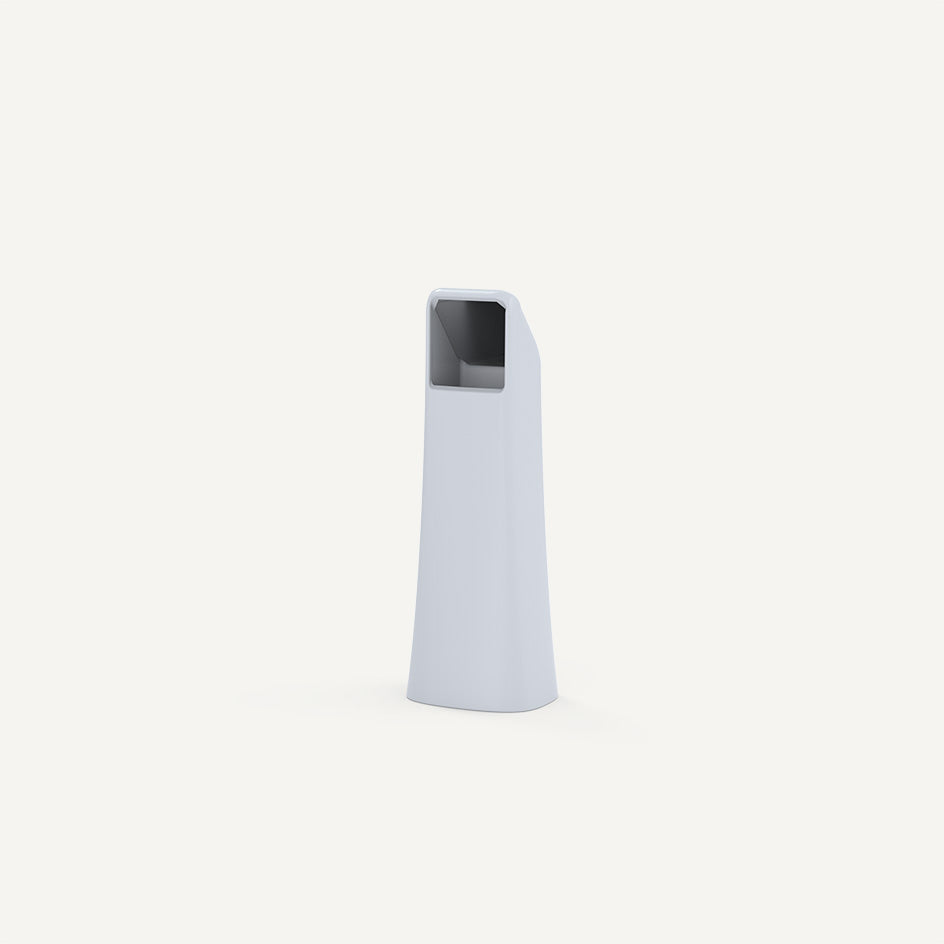

Tip Large – High Level Disinfection (TP101N): 12.5g
Tip Large – Sterilization (TP102N): 13.5g

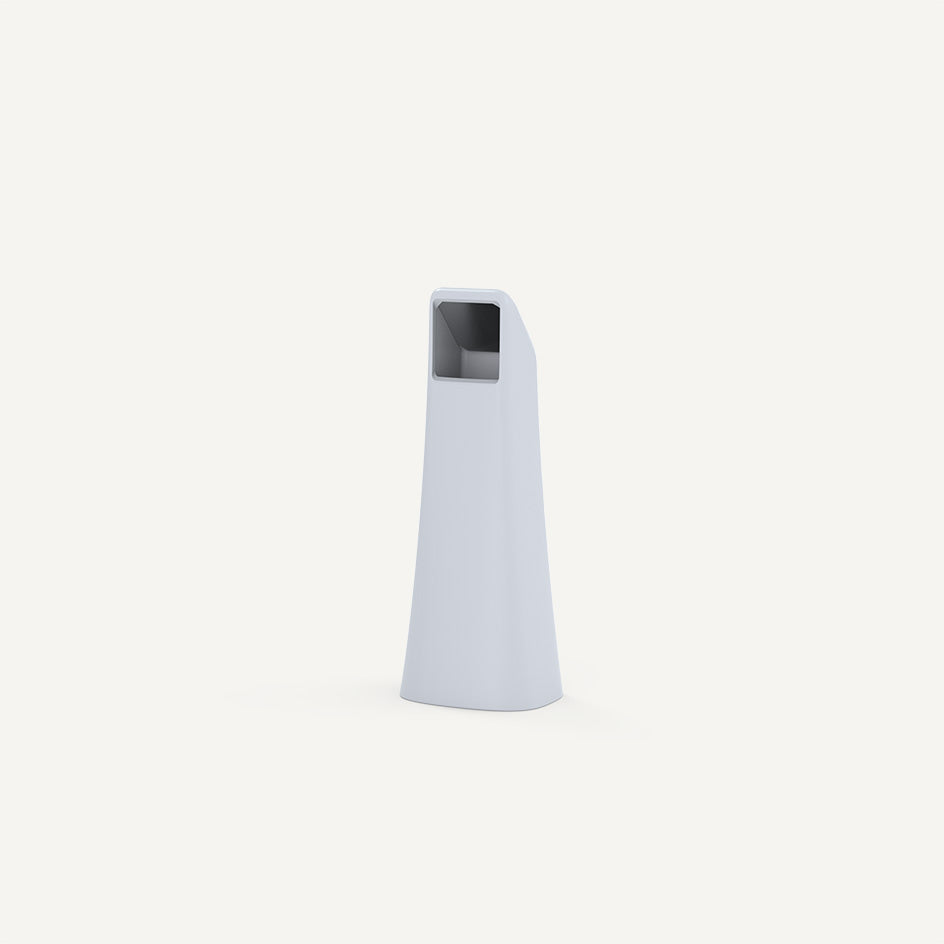

Tip Small – Sterilization (TP103N): 12.2g

Color
3D full color

Connectivity
USB 3.0 Power source USB 3.0 5V, 900mA

Field of view
Tip Large – High Level Disinfection (TP101N): 16mm x 14mm
Tip Large – Sterilization (TP102N): 16mm x 14mm
Tip Small – Sterilization (TP103N): 12mm x 12mm

Depth of view
15mm

Configuration requirement of workstation
Processor: Intel® CoreTM i7 9th Generation, base frequency 2.6 GHz (or better)
Memory: 16 GB (or more) DDR4, frequency 2666 MHz (or better)
Disk: 512G (or more) SSD
Graphics card: NVIDIA® GeForce® GTX 1650 (or better)
Display: 15.6” FHD (1920 x 1080) (or more)
Others: USB 3.0 port
Operating system: Windows 10 Pro Optional: Touch screen
